1.Piercing connector, simple installation, need not strip the cable coat.
2.Moment nut, piercing pressure is constant, keep good electric connection and make no damage to lead.
3.Self - seam frame, wet proof, waterproof, and anti-corrosion, extend the using life of insulated lead and connector. 4.Because body of insulation piercing connectors and packing is respectively made from special eng-ineering plastic and silicon
rubber, so it can work normally under the low temperature -40℃ ~＋105℃ and do not aging.
5.Small electric connecting resistance, impulse current can be up to 15KA.
6.Special insulated case body, resistance to illumination and environmental aging, the insulation strength can up to 6kV.
Arc surface design, apply to connection with the same(different)diameter, wide connection scope(1.5mm2-400mm2).Adopted special connecting tablet, apply to joint of Cu(AI) and Cu(AI) or Cu and AI.
|

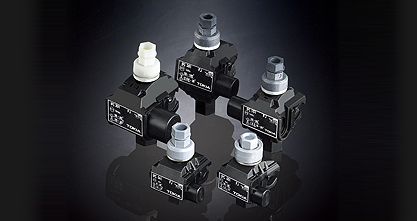

| TOKIA insulating piercing clamp has been precisely designed and improved, the structure is more rational, and has more steady electric performances, the raw material are of high quality. The enclosure made of reinforced engineering plastic, even under high temperature, it can keep the good elasticity and strength, waterproof sealing ring is of high quality rubber and silica gel, both enclosure and waterproof ring can be completely corrosion resistant, anti-aging, anti-ultraviolet, and withstand pressure, and temperature change. The clamp blade made of superconductive material, ensure the good conductive performance. Insulation material of fireproof type insulating piercing clamp can withstand test of glowing wire, fireproof grade of enclosure reach up to V0 class. |
在環境惡劣的條件下可選用不銹鋼螺栓(例如：IPC 281FX型號為不銹鋼螺栓)。
如需特殊規格型號可開模定制。
如果長期置于水下和在潮濕的環境中以及埋入地面的情況下，需配置防水接線盒。 |
|
|
|
|
|
